HP LaserJet M806/m806n Printer Repair,m806 Printer Maintenance Service and LaserJet M806 Repair Los Angeles, Orange County and San Bernardino Ca.
We repair Laser Jet M806dn/M806x+ in Southern California!
Laser-Jet M806, M806dn, M806X+ printer repair and maintenance service in Los Angeles and Orange County with image defects, vertical and horizontal lines, repeating dots and Image fuser kit replacement service. Our Laser Jet M806 printer service technicians are highly trained to troubleshoot and replace faulty image fuser kit, registration assembly, toner cartridges and roller kits.
Fast onsite Laser Jet M806dn/M806x+ maintenance service in Southern California. Our HP M806 technicians have the knowledge to repair M806dn/M806x+ printers on the first visit.
We offer 6 months warranty on HP M806 repair service in Southern California. We carry Laser-Jet M806dn/M806x+ parts to solve hardware failures and numerical error code on the first visit.
We repair HP M806dn/M806x+ smears, toner not bonding to paper, dirty printing and grinding noise. Our technicians carry M806 Fuser Unit, M806 Maintenance Kit, Roller Kits, paper cassette trays, Registration Assembly and M806 duplex unit.
We Carry Toner Cartridges and Maintenance Kits for LaserJet M806 Printers!

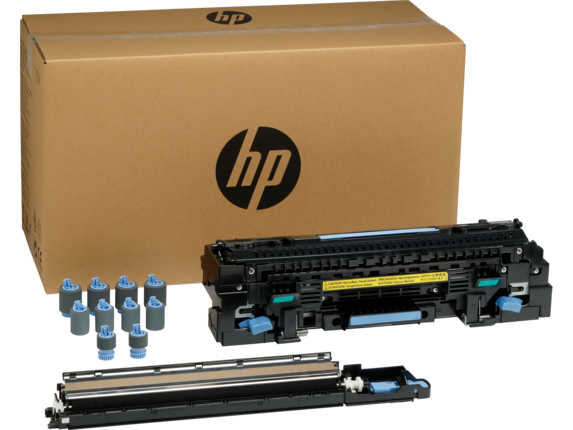

Is your Laser-Jet m806 or M830mfp failing with maintenance kit error code. We carry Laser-Jet M806 original Maintenance kits and toner cartridges to solve HP M806 and M830mfp image defects and paper wrinkles. We stock Laser Jet M806dn/M806x Maintenance kit C2H67A and toner cartridge CF325x.
Common error codes can be fixed by replacing the Maintenance Kit!
HP M806/M830mfp error code 50.11 fuser. error 50.1 fuser error 50.2 fuser error 50.3 fuser error 50.4 fuser error 50.5 fuser error 50.7 fuser error 50.8 fuser error 50.9 fuser error.
We Repair Laser Jet M806 Printer Service Code Messages
Some control-panel messages and event log entries refer to a specific product sensor or switching the recommended action to solve the problem. See the diagrams in the clear jams section of the product troubleshooting manual for sensor and switch locations.
10.XX.YZ Error Messages 10.00.00 e-Label Memory Error Description The product is unable to read the cartridge data.This message indicates that the product cannot read or write to the e-label of the toner cartridge.This error can cause the supplies status feature to be disabled.
Recommended action
1. Open the front door, lower the green handle, and then remove the toner cartridge.
2. Check the cartridge e-label. If it is damaged, replace the cartridge.
3. Reinsert the cartridge, push the release button, and then rotate the green handle to the locked position.
4. Close the front door.
5. If the message displays again, turn the product off then on.
6. If the error persists, replace the toner cartridge.
10.00.10 e-Label Missing Memory Error
Description The product is unable to detect the e-label.This message indicates that the product has determined that the e-label is missing.This error can cause the supplies status feature to be disabled.Recommended action
1. Open the front door, lower the green handle, and then remove the toner cartridge.
2. Check the cartridge e-label. If it is damaged, replace the cartridge.
3. Reinsert the cartridge, push the release button, and then rotate the green handle to the locked position.
4. Close the front door.
5. If the message displays again, turn the product off then on.
6. If the error persists, replace the toner cartridge.
7. If the error persists, reconnect the connector (J304) on the DC controller PCA
10.00.50 Cartridge seal roll up error
Description
The product encountered a toner cartridge roll up error.Recommended action
1. Reinstall the cartridge.
2. Turn the product off and then on.
3. Reconnect the connector (J305) on the DC controller PCA.
4. Replace the cartridge sensor assembly.
5. Replace the DC controller PCA.
10.23.50
Description The fuser kit life was reset above the order threshold
Recommended action
No action necessary.
10.23.51
Description
The fuser kit life was reset above the replace threshold.Recommended action No action necessary.
10.23.52
Description
The fuser kit life was reset above the reset threshold.Recommended action No action necessary.
10.23.70 Printing Past Very Low Description The product indicates when the fuser kit is very low. The actual remaining fuser kit life might vary.You do not need to replace the fuser kit at this time unless print quality is no longer acceptable. After an HP supply has reached the very low threshold, the HP premium protection warranty ends.Recommended action If print quality is no longer acceptable, replace the fuser kit.See the parts chapter in the service manual for the fuser kit part number. Advise the customer that HP recommends that they have replacement supplies available to install when the print quality is nolonger acceptable.1
0.32.00 Unauthorized supply
Description
This error message displays when a supply (or supplies) has been inserted into the product and the product determines that HP is in the OEM field, but the supply (or supplies) does not pass the new authentication test.This error will only be shown if the product currently has all genuine supplies.Recommended action Choose to continue past this error by touching OK.If you believe you purchased a genuine HP supply, go to www.hp.com/go/anti counterfeit. Any product repair required as a result of using non-HP or unauthorized supplies is not covered under warranty.
10.XX.33 Used Supply In Use
Description
The toner cartridge is used.
10.00.33 (event code) Used toner cartridge Recommended action If you believe this is a genuine HP supply, go to www.hp.com/go/anticounterfeit.Using a cartridge that is near its end-of-life can cause this event code.
10.XX.34 Used Supply In Use
Description
The toner cartridge is used.10.00.34 (event code) Black toner cartridge Recommended action If you believe this is a genuine HP supply, go to www.hp.com/go/anticounterfeit.Removing a cartridge from one product and then installing it in a different product (for testingfunctionality) will cause this event code.
10.XX.40 Genuine HP Supplies Installed
Description
A genuine HP toner cartridge has been installed.10.00.40 (event code) Black toner cartridge Recommended action No action necessary.
10.XX.41 Unsupported Supply in Use
Description The installed toner cartridge is for a different product.10.00.41 (event code) Black toner cartridge
Recommended action Remove the toner cartridge, and then install the correct cartridge for this product.See the parts chapter in the service manual for the correct cartridge part number.
10.XX.70 Printing past very low
Description
The product indicates when a supply level is very low. The actual remaining toner cartridge life might vary.
